PARAMETERS
Advantages
●Power station grade photocells, which deliverexceptional performance and yield
●Suitable for street light, monitoring and other outdoorelectrical equipment power supply
●Cells matched for electrical uniformity produce high power output and reliability
●Easy to install, suitable for all extreme environments
Product Features |
●High performance in low light conditions, allowing the module to operate in mornings, evenings and cloudy days | ●Vertical installation, can resist strong wind, and can avoidthe accumulation of dust, rain, snow and fallen leaves |
●Cylindrical structure, 360° sunlight reception | ●Vertical installation, can resist strong wind, and can avoid the accumulation of dust, rain, snow and fallen leaves |
●High performance cell efficiency of >22.5% | ●Each individual module has a working indicator light |
●Anodized aluminium alloy frame, which is strengthened to avoid freezing or warping | ●Each photovoltaic panel works independently of each other |
●Sturdy frame allows mounting in portrait or landscape orientations | ●Anti-backcharging device |

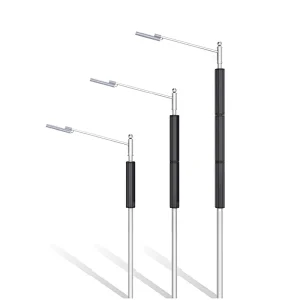

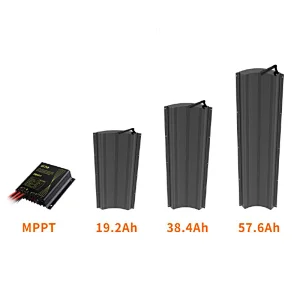

STRUCTURE
Dimensiones
Product Model |
Wattage |
Solar Panel |
Luminous Efficacy
|
Charging time
|
Discharge time
|
IP Grade |
IK Grade |
Material
|
Dimension(mm) |
Solar Tube |
50W |
19.3V 50W
|
160LM/W |
6-8 hours ( Strong sunshine)
|
10-30 hours (With detection)
|
IP65 | IP66 |
IK08 | IK09 |
Aluminum
|
230*213*556MM
|
Solar Tube |
100W |
19.3V 100W
|
160LM/W |
6-8 hours ( Strong sunshine)
|
10-30 hours (With detection)
|
IP65 | IP66 |
IK08 | IK09 |
Aluminum
|
230*213*1056MM
|
Solar Tube |
150W |
38V 150W |
160LM/W |
6-8 hours ( Strong sunshine)
|
10-30 hours (With detection)
|
IP65 | IP66 |
IK08 | IK09 |
Aluminum
|
230*213*1556MM
|
Solar Tube |
200W |
34.8V 200W |
160LM/W |
6-8 hours ( Strong sunshine)
|
10-30 hours (With detection)
|
IP65 | IP66 |
IK08 | IK09 |
Aluminum |
294*274*1545MM |
Solar Tube |
200W |
38V 200W |
160LM/W |
6-8 hours ( Strong sunshine)
|
10-30 hours (With detection)
|
IP65 | IP66 |
IK08 | IK09 |
Aluminum |
230*213*1885MM |
Solar Tube |
240W/250W |
38.8V 240W/250W |
160LM/W |
6-8 hours ( Strong sunshine)
|
10-30 hours (With detection)
|
IP65 | IP66 |
IK08 | IK09 |
Aluminum |
294*274*1820MM |
Solar Tube |
500W |
38.8V 500W |
160LM/W |
6-8 hours ( Strong sunshine)
|
10-30 hours (With detection)
|
IP65 | IP66 |
IK08 | IK09 |
Aluminum |
550*550*1820MM |
