All In One Solar Street Light 20-80W

SSL023
Quantity:
DOWNLOAD MATERIALS
PARAMETERS

Description

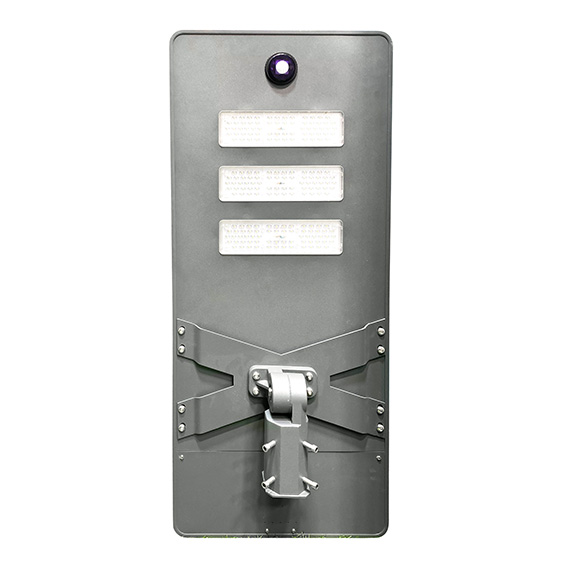

Range of intelligent and autonomous solar LED luminaires. The luminaire  integrates photovoltaic panel, high capacity Li-ion battery, charge controller and LED optical group.LED optics.

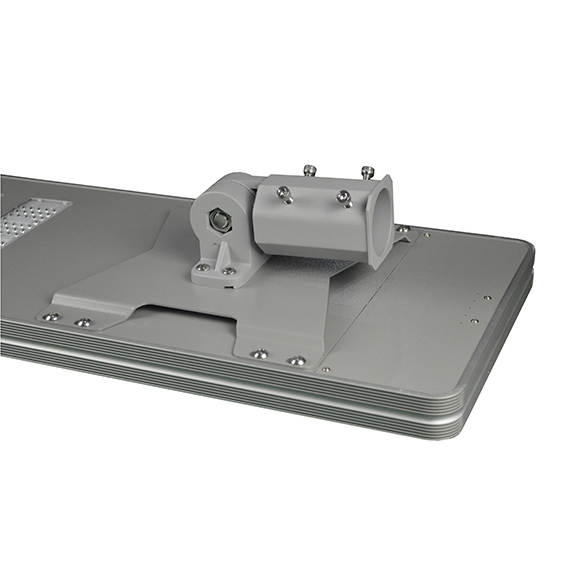

In addition, an infrared presence sensor is included to increase the autonomy autonomy by reducing the illumination level following a dimming curve, when no presence is detected. Automatic switch-on when no light is detected. Easy mounting on any standard column, with a variable panel inclination in road models for a greater variable inclination of the panel in road models for a better use of sunlight.

Advantages
●100% autonomous solar LED luminaire.
●High efficiency of the LED array.
●Integration of all components in a single product.
●Maximum respect for the respect for the environment.
●Economical, efficient and intelligent.
●Very easy installation with adaptation.

STRUCTURE

Product Model Wattage Solar Panel
Luminous Efficacy
Battery Color Temperature Beam Angle IP Grade IK Grade
Optical material
Fixing
Dimension(mm)
SSL023 20W 8V 35W 160LM/W  3.2V 46AH   2400K|2700K|3000K
|4000K|5000K
Type II | Type III
IP65 | IP66
IK08 | IK09
PC
φ 60
571*413*160
SSL023 40W 10V 45W 160LM/W
3.2V 60AH
2400K|2700K|3000K
|4000K|5000K
Type II | Type III IP65 | IP66 IK08 | IK09 PC φ 60
700*413*160
SSL023 60W 14V 60W 160LM/W
6.4V 40AH
2400K|2700K|3000K
|4000K|5000K
Type II | Type III IP65 | IP66 IK08 | IK09 PC φ 60
957*413*160
SSL023 80W 18V 85W 160LM/W
6.4V 64AH
2400K|2700K|3000K
|4000K|5000K
Type II | Type III IP65 | IP66 IK08 | IK09 PC φ 60 1215*413*160
LIGHT DISTRIBUTION
SPECS SHEET
SSL023 solar street light from Alite Lighting-2022-07.pdf
Download PDF
