Road Project Lighting
Road Project Lighting
LED Street lIght 50w Price
LED Light Street Light
Road Project Lighting
Road Project Lighting
LED Street lIght 50w Price
LED Light Street Light
Road Project Lighting

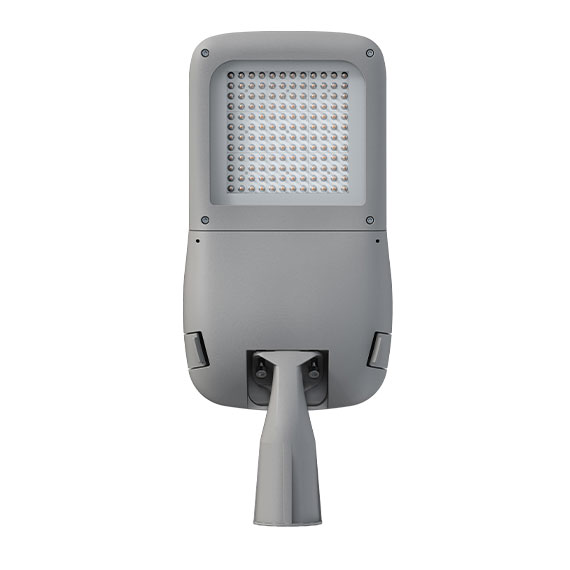

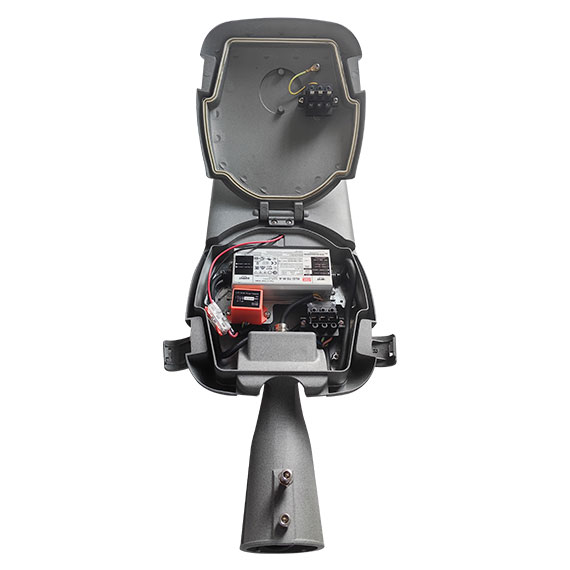

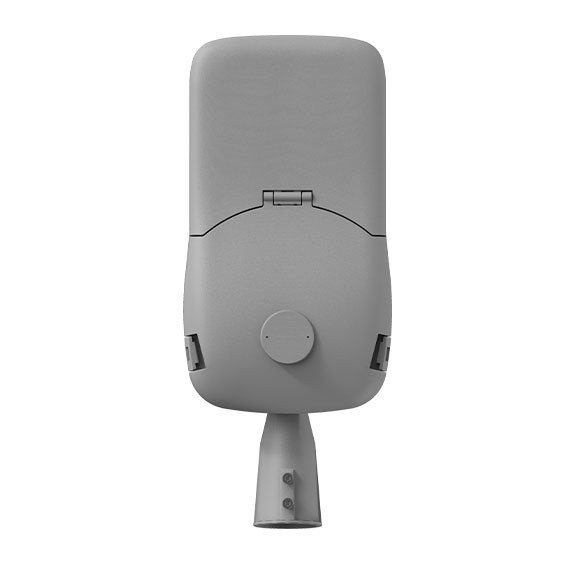

Road Project Lighting 30-240W

ASL22
Quantity:
PARAMETRES
● Efficiency rating of 200 lumens per watt (200Lm/W). It maximizes energy savings and minimizes environmental impact, providing brighter illumination.
● ASL22 LED Street light utilizes advanced 2835/3030/5050 SMD light source technology, delivering a superior quality of light output.
● The die-casting aluminum body of ASL22 is built to withstand the harshest environmental conditions.
● ASL22 boasts an impressive moisture-tolerant level of IP66.
● ASL22 allows for flexible adjustments in beam angles to suit different road types and lighting requirements. By adopting various light distribution types, it ensures optimal light distribution, minimizing light pollution and maximizing visibility.
● ASL22 supports the installation of built-in light sensors, NEMA, and Zhaga bases. This makes it compatible with a wide range of external controllers, motion sensors, and light sensors.
APPLICATION


ROADSRESIDENTIAL STREETSBRIDGESPARKING LOTAIRPORTPORT
STRUCTURE
Model Wattage Voltage
Efficiency
RA CCT Beam Angle PF IP IK
Material Of Shell
Material Of Lens
Pole diameter
(mm)
Dimension(mm)
ASL22-A 30-80W
 AC85-305V
AC450-480V
200LM/W  >70|80|90  2200K-6500K
Type I | Type II | Type III
>0.95
IP65|IP66
IK08|IK09| IK10
Aluminum (ADC12) +Tempered Glass
PMMA | PC
φ 60
578*228*135
ASL22-B  80W-150W
AC85-305V
AC450-480V
200LM/W >70|80|90  2200K-6500K  Type I | Type II | Type III >0.95 IP65|IP66 IK08|IK09| IK10 Aluminum (ADC12) +Tempered Glass PMMA | PC φ 60
599*256*141
ASL22-C 150W-240W
AC85-305V
AC450-480V
200LM/W >70|80|90  2200K-6500K Type I | Type II | Type III >0.95 IP65|IP66 IK08|IK09| IK10 Aluminum (ADC12) +Tempered Glass PMMA | PC φ 60
729*328*157
LIGHT DISTRIBUTION
