Smart LED Flood Light 50-300W
Smart LED Flood Light 50-300W
Smart LED Flood Light 50-300W
Smart LED Flood Light 50-300W
Smart LED Flood Light 50-300W
Smart LED Flood Light 50-300W
Smart LED Flood Light 50-300W

Smart LED Flood Light 50-300W

AFL52
Quantity:
DOWNLOAD MATERIALS
PARAMETERS
AFL52 is a new economic type of projection lamp, which is compatible with 4 mainstream drive scheme and has 6 shell sizes, corresponding to 6 different
powers. It’s designed to meet high-power requirements and ensure the best cost. The shell is made of ADC12 die-casting aluminum, and the structure is streamlined, which makes heat dissipation more superior and lifetime longer.

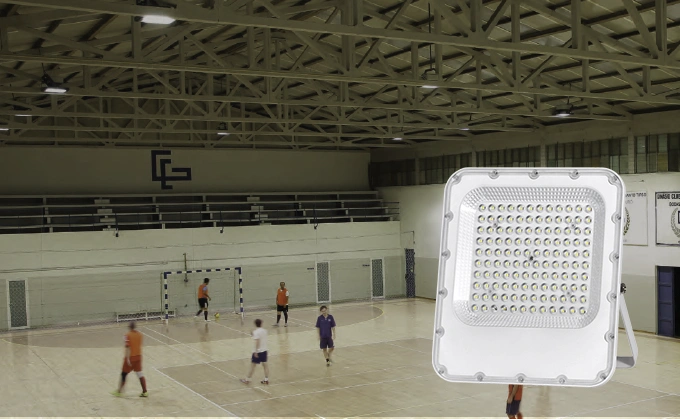

The lens of AFL52 is made of PC material and the light angle is 90 °. It is widely used in indoor and outdoor scenes such as stadium, courtyard, corridor, factory, square, park and so on. There are a diversity of installation methods of AFL52 including floor mount, ceiling mount, wall mount and pole mount. At the same time,

AFL52 can also be equipped with brightness sensors and mobile detection function so that the lamp can automatically light during the night and go off during the day, in response to intelligence and energy-saving features.

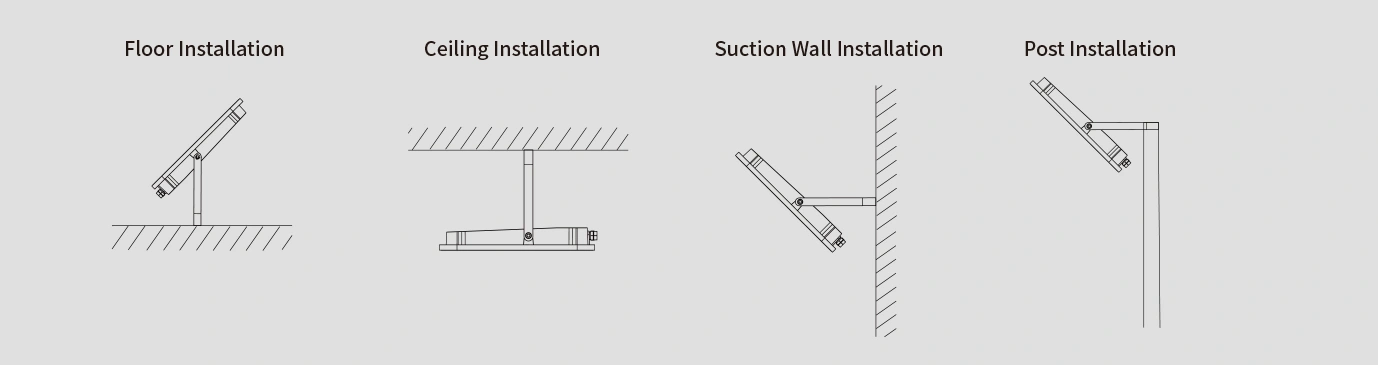

Multiple Installation Methods
APPLICATION


ROADSTUNNELSWAREHOUSEPARKING LOTSPORTS FACILITIESPORT
STRUCTURE

Product Model Wattage Input voltage
Luminous Efficacy
RA Color Temperature Beam Angle Power Factor IP Grade IK Grade
Material Of Shell
Dimension(mm)
AFL52-A 30W  AC85-265V 140Lm/W >70|80|90
2400K | 2700K | 3000K | 4000K
5000K
90° >0.9 IP65 IK08 Aluminum (ADC12) 162*183*38
AFL52-B 50W  AC85-265V 140Lm/W  >70|80|90
2400K | 2700K | 3000K | 4000K
5000K
90°
>0.9
IP65
IK08
Aluminum (ADC12)
225*192*37
AFL52-C 100W   AC85-265V 140Lm/W >70|80|90
2400K | 2700K | 3000K | 4000K
5000K
90° >0.9 IP65 IK08 Aluminum (ADC12)
245*280*50
AFL52-D 150W  AC85-265V 140Lm/W >70|80|90
2400K | 2700K | 3000K | 4000K
5000K
90° >0.9 IP65 IK08 Aluminum (ADC12)
270*315*53
AFL52-E 200W  AC85-265V 140Lm/W >70|80|90
2400K | 2700K | 3000K | 4000K
5000K
90° >0.9 IP65 IK08 Aluminum (ADC12) 300*350*55
AFL52-F 300W  AC85-265V 140Lm/W >70|80|90
2400K | 2700K | 3000K | 4000K
5000K
90° >0.9 IP65 IK08 Aluminum (ADC12) 325*380*55
LIGHT DISTRIBUTION

50W
100W
150W
200W
SPECS SHEET
Spectrophotocolorimeter Test Report 100W.pdf
Download PDF
