LED Warehouse Lighting High Bay
LED Warehouse Lighting High Bay

LED Warehouse Lighting High Bay

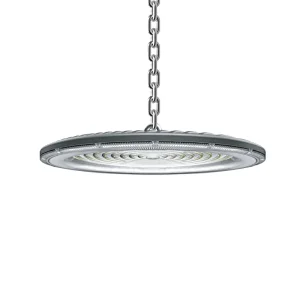

UFO21
Quantity:
PARAMETRES
  • UFO21 is a new economical high bay light fixture, it can use linear or DOB scheme to meet the needs of different customers.
  • There are 5 shell sizes, corresponding to 100W, 150W, 200W, 300W and 400W respectively, to meet the needs of customers for larger size, higher power and light efficiency.
  • The UFO21 housing is made of ADC12 die-cast aluminum and has IK08 and IP65 protection grades, which are suitable for various harsh environments.
  • The surface of the UFO21 adopts an anti-UV PC integrated lens, which effectively resists the damage of ultraviolet rays to the internal devices, and the light-emitting angle is a symmetrical angle of 90°.
  • UFO21 utilizes the advantages of small size and thinness, it is a perfect cabinet installation artifact, It’s an ideal substitute for traditional high-bay lamps.
APPLICATION

TUNNELSWAREHOUSEPARKING LOTSPORTS FACILITIESPORT
STRUCTURE
Model Wattage Voltage
Efficiency
 RA CCT Beam Angle PF IP IK
Material Of Shell
Material Of Lens
 Dimension（mm）
UFO21-A 100W  AC100-240V 120LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K
90°
＞0.9
IP65
IK08
Aluminum (ADC12)
 PC
Φ260*H31.5
UFO21-B  150W  AC100-240V 120LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K 90° ＞0.9 IP65 IK08 Aluminum (ADC12)   PC
Φ300*H31.5
UFO21-C 200W AC100-240V 120LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K 90° ＞0.9 IP65 IK08 Aluminum (ADC12)  PC
Φ330*H31.5
UFO21-D 300W/400W AC100-240V 120LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K 90° ＞0.9 IP65 IK08 Aluminum (ADC12)  PC
Φ360*H31.5
Φ390*H31.5
LIGHT DISTRIBUTION
