AFL70
Quantity:
DOWNLOAD MATERIALS
PARAMETERS

ABOUT
  AFL70

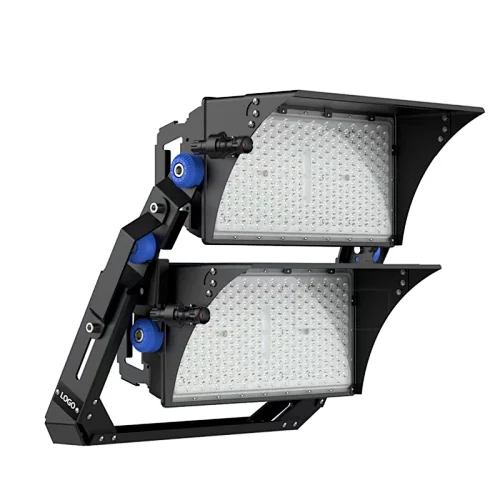

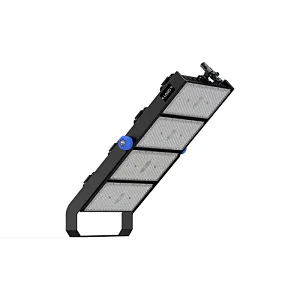

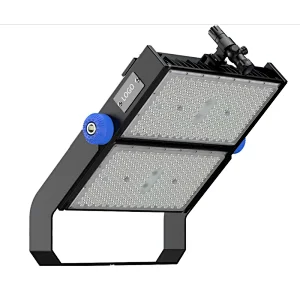

AFL70 is a new type of module flood light fixture, which supports up to 8 modules, corresponding to 8 different powers from 250W to 2500W, which can meet the different power requirements of customers and achieve the optimal cost. AFL70 not
only uses ADC12 die-casting aluminum radiator, but also uses the most advanced finite element cooling technology to control lamp temperature to achieve ultra-high lumen maintenance rate. The lens is made of UV-resistant PC material. With 6 different symmetrical luminous angles to choose, AFL70 can be applied in various places and has diversified characteristics. Also, AFL70 adopts the pole-mounting
method to replace street lights. It can be applied in various urban expressways, factories, gardens, schools, squares and other outdoor places.

Multiple Installation Methods

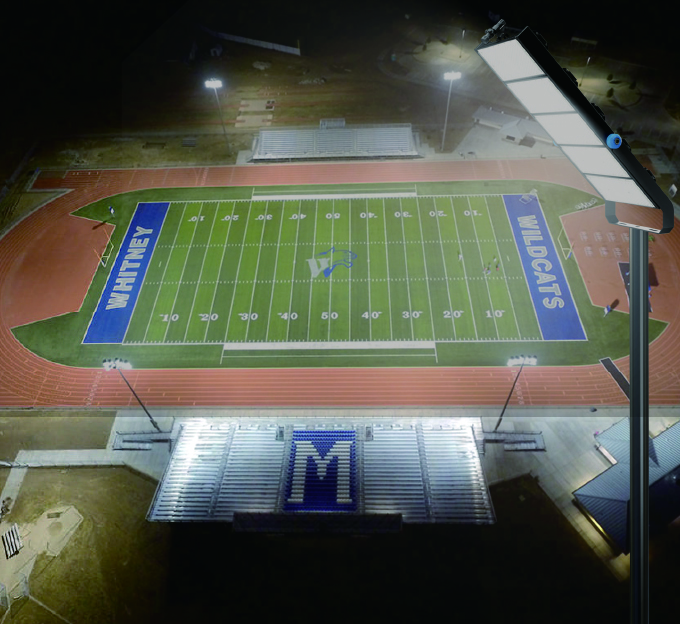

APPLICATION

STRUCTURE

Product Model Wattage Input voltage
Luminous Efficacy
RA Color Temperature Beam Angle Power Factor IP Grade IK Grake
Material Of Shell
Dimension(mm)
AFL70-A 250W  AC100-240V 150LM/W  >70|80|90   2400K|2700K|3000K|4000K|5000K
15° | 30° | 40° | 60° | 90° | 120°
>0.9
IP66
IK08
Aluminum (ADC12)
436*284*163
AFL70-B  500W  AC100-240V 150LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K
15° | 30° | 40° | 60° | 90° | 120°
>0.9 IP66 IK08 Aluminum (ADC12)
436*499*163
AFL70-C 750W AC100-240V 150LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K
15° | 30° | 40° | 60° | 90° | 120°
>0.9 IP66 IK08 Aluminum (ADC12)
464*689*183
AFL70-D 1000W AC100-240V 150LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K
15° | 30° | 40° | 60° | 90° | 120°
>0.9 IP66 IK08 Aluminum (ADC12)  464*879*183
AFL70-E 1250W AC100-240V 150LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K
15° | 30° | 40° | 60° | 90° | 120°
>0.9 IP66 IK08 Aluminum (ADC12)  464*1069*183
AFL70-F 1500W AC100-240V 150LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K
15° | 30° | 40° | 60° | 90° | 120°
>0.9 IP66 IK08 Aluminum (ADC12)  865*692*189
AFL70-G 2000W AC100-240V 150LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K
15° | 30° | 40° | 60° | 90° | 120°
>0.9 IP66 IK08 Aluminum (ADC12)  865*882*189
AFL70-H 2500W AC100-240V 150LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K
15° | 30° | 40° | 60° | 90° | 120°
>0.9 IP66 IK08 Aluminum (ADC12)  865*1072*189
LIGHT DISTRIBUTION
SPECS SHEET
