Smart led Street Lighting

ASL30
Quantity:
DOWNLOAD MATERIALS
PARAMETERS



ABOUT    ASL30

ASL30 SAKER SERIES is just another birds from our  Falconidae birds that can illuminate the sky of our cities, ASL30 SAKER  Led Street Light SERIES is 150lm/w which makes it one of the luminaries those you cant see every day around you . ASL30 SAKER Led Street Light SERIES is the perfect Led Light Street product with most optimal costs for a high efficiency professional luminaries.withe the openings on the drive sides make the accessibly and the maintenance easy, however even with openings this model can still make it  IP65, and IK08, with supporting changing the lens angle to achieve different light distribution types for different roads and applications. With integration of the option that known as  built-in light sensor is available that allows the system to turning on the light at dark and turning it off at daylight automatically is making the system perfect for all types of installation.

Smart led Street Lighting

PRODUCT DETAILS
Smart led Street Lighting

APPLICATION

Smart led Street Lighting
STRUCTURE
Product Model Wattage Input voltage
Luminous Efficacy
RA Color Temperature Beam Angle Power Factor IP Grade IK Grade
Material Of Shell
Material Of Lens
Pole diameter
(mm)
Dimension(mm)
ASL30-A 10-80W  AC85-305V
AC450-480V
220LM/W  >70|80|90   2400K|2700K|3000K|
4000K|5000K|6500k
Type I | Type II | Type III
>0.95
IP65|IP66| IP67
IK08|IK09| IK10
Aluminum (ADC12) +Optical Glass
PMMA | PC
φ 60
572*195*93
ASL30-B  80W-150W  AC85-305V
AC450-480V
220LM/W >70|80|90  2400K|2700K|3000K|
4000K|5000K|6500k
Type I | Type II | Type III >0.95 IP65|IP66| IP67 IK08|IK09| IK10 Aluminum (ADC12) +Optical Glass PMMA | PC φ 60
640*240*93
ASL30-C 150W-200W AC85-305V
AC450-480V
220LM/W >70|80|90  2400K|2700K|3000K|
4000K|5000K|6500k
Type I | Type II | Type III >0.95 IP65|IP66| IP67 IK08|IK09| IK10 Aluminum (ADC12) +Optical Glass PMMA | PC φ 60
718*285*99

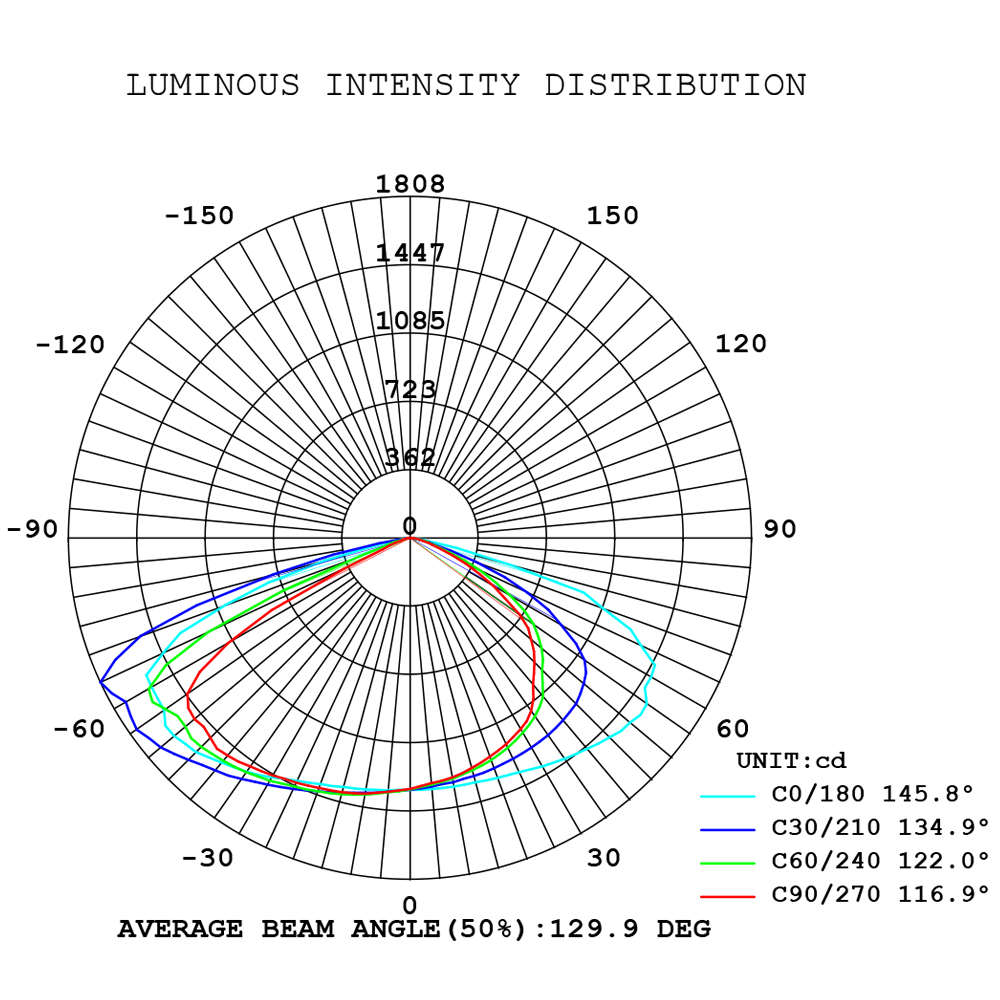

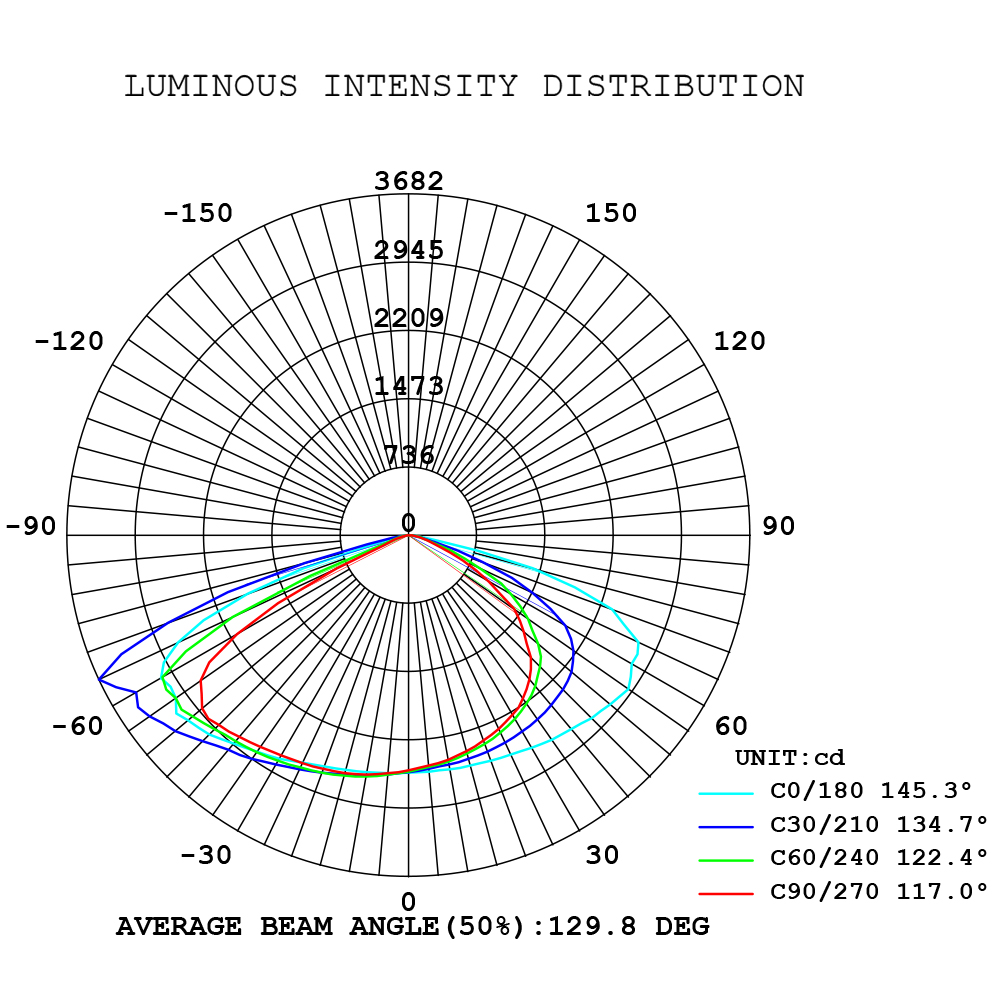

LIGHT DISTRIBUTION

40W
Smart led Street Lighting
60W
Smart led Street Lighting
80W
Smart led Street Lighting
100W
Smart led Street Lighting
120W
Smart led Street Lighting
150W
Smart led Street Lighting
SPECS SHEET
ASL30 SAKER SERIES from Alite Lighting.pdf
Download PDF
2022 LED Street Lights catalogue from Alite.pdf
Download PDF
SAKER100W(ASL30-B).pdf
Download PDF
Spectrophotocolorimeter Test Report 100W.pdf
Download PDF
