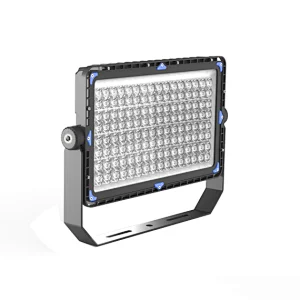

LED Sport Lighting 500-1500W

AFL72
Quantity:
PARAMETRES
  • AFL72 LED Sport Lighting redefines efficiency in stadium lighting. With an impressive efficacy of 160Lm/W, it maximizes energy conversion, providing exceptional brightness while minimizing power consumption.
  • The integrated aluminum die-casting body ensures excellent heat dissipation, extending the lifespan of the lighting system.
  • AFL72 incorporates a honeycomb heat dissipation design, enhancing the cooling efficiency of the lighting system. This innovative design effectively dissipates heat, preventing excessive temperature build-up and ensuring consistent performance.
  • AFL72 offers the flexibility of a modular design, allowing multiple modules to be used in parallel. This feature enables customization and scalability, catering to the specific lighting requirements of different-sized stadiums.
  • AFL72 combines the use of ADC12 die-casting aluminum heat sink with the most advanced finite element heat dissipation technology. This innovative approach ensures precise temperature control, maintaining an ultra-high lumen rate throughout the lifespan of the lamp.





APPLICATION


ROADSTUNNELSWAREHOUSEPARKING LOTSPORTS FACILITIESPORT

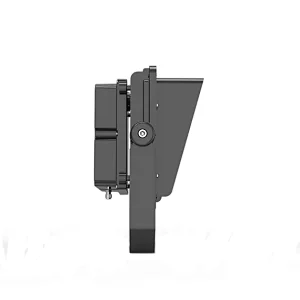

STRUCTURE

Model Wattage Voltage
Efficiency
RA CCT Beam Angle PF IP IK
Material Of Shell
Dimension(mm)
AFL72-A 500W
 AC85-305V
AC450-480V
160LM/W  >70|80|90   2400K|2700K|3000K|4000K|5000K
15° | 30° | 40° | 60°
>0.9 without flicker
IP66
IK08
Aluminum (ADC12)
534*130*338
AFL72-B  1000W
AC85-305V
AC450-480V
160LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K
15° | 30° | 40° | 60°
>0.9 without flicker IP66 IK08 Aluminum (ADC12)
544*178*800
AFL72-C 1500W
AC85-305V
AC450-480V
160LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K
15° | 30° | 40° | 60°
>0.9 without flicker IP66 IK08 Aluminum (ADC12)
544*178*1179
LIGHT DISTRIBUTION
