Discover how to select sports lighting that meets FIFA, UEFA, and NCAA standards. Compare LED vs Metal Halide, learn about lux levels, glare control, and energy savings.

1. Introduction: Why Sports Lighting Selection Matters

When it comes to hosting safe, exciting, and broadcast-ready sports events, lighting plays a far bigger role than most people realize. Whether it’s a local school gym or an international stadium like Lusail Stadium in Qatar, proper sports lighting directly impacts player performance, spectator comfort, and the quality of live broadcasts.

Poorly selected lighting can lead to uneven brightness, distracting glare, or even unsafe playing conditions. On the other hand, a well-designed lighting system ensures that every corner of the field is evenly lit, colors appear true-to-life for broadcast audiences, and energy consumption stays within budget.

According to the IES RP-6-22 Sports Lighting Standard, lighting systems account for up to 40% of a stadium’s total energy use. This makes careful selection not just a technical requirement, but a long-term investment in sustainability and operational efficiency.

In this guide, you’ll learn how to select sports lighting that meets global standards like FIFA, UEFA, EN 12193, and NCAA, while balancing cost, performance, and longevity. You’ll also see real-world examples.



2. Real-World Case Study: Lusail Stadium, Qatar 2022

Project Overview

As the centerpiece of the 2022 FIFA World Cup, Lusail Stadium in Qatar set new benchmarks for stadium infrastructure—including its cutting-edge lighting system. Hosting the World Cup Final watched by over 1 billion viewers worldwide, Lusail’s lighting had to meet the most demanding international standards for live broadcast, player performance, and audience experience.

Key Lighting Specifications at Lusail Stadium

• Illuminance Level (Lux): 3,500 lux on the field
• Uniformity Ratio (U1): >0.7 (high uniformity, minimal dark spots)
• Color Rendering Index (CRI): 90+ (high color accuracy for 4K/8K broadcasts)
• Color Temperature: 5700K (daylight white for clarity and vibrancy)
• Flicker-Free Technology: Certified 0% flicker, essential for slow-motion replays
• Glare Rating (GR): <50 to ensure player and spectator comfort

Sustainability & Efficiency

• LED Technology: Replaced conventional metal halide systems
• Energy Reduction: Estimated 40% lower energy consumption compared to traditional lighting
• Smart Control Systems: DMX and DALI compatible for real-time lighting scenes and energy optimization

Lessons Learned for Facility Managers

1. Match Lighting Specs to Event Requirements
   Lusail’s 3,500 lux level is perfect for professional sports and broadcast, but may exceed the needs (and budget) of schools or amateur clubs.
2. Invest in Flicker-Free & High-CRI Lighting
   These two factors make the difference between standard and broadcast-ready installations.
3. Consider Long-Term Operational Costs
   While LED systems have a higher upfront cost, their lower energy use and reduced maintenance deliver significant cost savings over 5–10 years.



3. Key Standards You Must Meet

Selecting sports lighting isn’t just about brightness or fixture style. You must ensure regulatory compliance to meet player safety, broadcasting quality, and legal requirements. Below are the four most referenced standards that influence professional and amateur sports lighting projects worldwide.

---

3.1 FIFA Lighting Handbook 2023

• Target Sports: Football (Soccer), Multi-purpose stadiums
• Key Requirements:
  • 2,000 to 3,500 lux for HD and UHD (4K/8K) broadcast events
  • CRI ≥ 80, preferably 90+ for international broadcasts
  • Glare Rating (GR) < 50 for player comfort
  • Flicker-Free Certification for slow-motion replays
• Why It Matters: Meeting FIFA standards ensures your facility is suitable for international matches and broadcast licensing.

---

3.2 UEFA Stadium Lighting Guidelines

• Target Sports: UEFA Champions League, Europa League, National Leagues
• Key Requirements:
  • Minimum 1,500 lux for TV broadcast
  • High uniformity (U1 ≥ 0.7)
  • Color Temperature 4,000K to 6,000K
• Why It Matters: Compliance is mandatory for hosting UEFA-sanctioned matches.

---

3.3 EN 12193 European Standard for Sports Lighting

• Target Applications: Indoor and outdoor sports facilities across Europe
• Key Requirements:
  • Defines lighting classes: Training, Amateur, Professional
  • Lux Levels: From 300 lux (training) to 1,500 lux (professional)
  • Uniformity and Glare: Class-specific values
• Why It Matters: Essential for sports facilities seeking public safety certification in Europe.

---

3.4 NCAA Sports Lighting Recommendations

• Target Sports: Basketball, Football (American), Baseball, Multi-sport arenas
• Key Requirements:
  • 750 to 1,250 lux for televised games
  • Uniformity U1 ≥ 0.6
  • Flicker-Free Lighting recommended for live broadcast
• Why It Matters: Helps universities and colleges provide safe, compliant, and media-friendly sports environments.

---

Comparison Table Example

Standard	Lux Requirement	CRI	Uniformity (U1)	Glare Rating (GR)	Flicker-Free
FIFA	2,000–3,500	90+	≥ 0.7	< 50	Required
UEFA	1,500+	80+	≥ 0.7	< 50	Recommended
EN 12193	300–1,500	80+	Varies	Varies	Recommended
NCAA	750–1,250	80+	≥ 0.6	< 50	Recommended



4. Six Key Factors in Sports Lighting Selection

Choosing the right sports lighting goes beyond wattage or cost. The following six technical factors will help ensure your venue meets performance, safety, and regulatory requirements.

---

4.1 Required Illuminance (Lux Levels)

Lux measures the amount of visible light that reaches a surface. Different sports and usage levels require different lux levels.

Application	Recommended Lux Level
Training Grounds	200–500 lux
Amateur Competitions	500–1,000 lux
Professional Matches	1,500–3,500 lux
Broadcast-Ready Stadiums	2,000–3,500 lux

Tip: Higher lux improves visibility but increases energy demand—choose based on event level.

---

4.2 Uniformity Ratios (U1, U2)

Uniformity ensures consistent brightness across the entire field.

• U1 Ratio = Minimum / Average illuminance
• U2 Ratio = Minimum / Maximum illuminance

Higher ratios (closer to 1.0) reduce shadows and dark spots.

• Target: U1 ≥ 0.7 for professional sports

---

4.3 Glare Control

Glare can impair player vision and spectator comfort.
Glare Rating (GR) quantifies this effect:

• GR < 50 is recommended for professional venues
• Proper fixture aiming and shielding reduce glare

---

4.4 Color Rendering Index (CRI)

CRI measures how accurately colors appear under lighting.

• CRI 80+ is standard for general sports use
• CRI 90+ is preferred for HD/4K/8K broadcasting

High CRI improves player visibility and fan experience on TV.

---

4.5 Color Temperature (CCT)

CCT, measured in Kelvin (K), affects the "color" of white light:

• 4000K–5000K: Neutral white, suitable for indoor sports
• 5700K–6000K: Daylight white, ideal for large outdoor stadiums

Consistent CCT prevents color shifts on camera and in person.

---

4.6 Flicker-Free Technology

Flicker, invisible to the naked eye, destroys slow-motion replay quality and causes eye strain.

• Certified flicker-free lighting uses advanced drivers to eliminate this issue.
• Essential for venues aiming for professional video production.

5. LED vs Metal Halide: Which Is Better for You?

When planning a sports lighting upgrade or new installation, one of the most common questions is:
“Should I choose LED or stick with Metal Halide?”

While Metal Halide has been the industry standard for decades, LED technology now dominates professional sports lighting for several important reasons.

---

5.1 Energy Efficiency Comparison

Technology	Energy Efficiency	Operating Cost
LED	130–180 lm/W	Low
Metal Halide	70–90 lm/W	High

• LEDs consume up to 50% less energy than metal halide systems.
• Lower operating cost makes LED more sustainable long-term.

---

5.2 Maintenance and Lifespan

Technology	Lifespan (Hours)	Maintenance Frequency
LED	50,000–100,000	Minimal
Metal Halide	10,000–15,000	Frequent (bulb/ballast replacement)

• LED offers 5–10x longer lifespan.
• Reduced labor and parts costs.

---

5.3 Light Quality and Flicker

Technology	CRI	Flicker-Free Capability
LED	80–90+	Yes
Metal Halide	60–70	No

• LED provides higher color accuracy (CRI 80–90+).
• Flicker-free drivers make LED ideal for HD/4K/8K broadcasting.

---

5.4 Cost of Ownership Over 5 Years

Example: 500-Lux Football Field, 12 Fixtures

Technology	Initial Cost	Energy + Maintenance (5 Years)	Total 5-Year Cost
LED	$24,000	$10,000	$34,000
Metal Halide	$18,000	$25,000	$43,000

• LED has a higher upfront cost, but saves more over time.
• Lower energy and maintenance bills make LED the smart long-term choice.

---

Summary Recommendation:

• Use LED if you require energy savings, low maintenance, and broadcast-ready quality.
• Metal Halide may suit low-budget, temporary installations, but expect higher long-term costs.

6. Advanced Features to Consider

Beyond meeting basic performance standards, modern sports lighting systems offer advanced technologies that help venue managers optimize lighting quality, reduce operating costs, and create dynamic lighting experiences.

---

6.1 Smart Control Systems (DALI / DMX Integration)

• DALI (Digital Addressable Lighting Interface) and DMX (Digital Multiplex) systems allow real-time control of brightness, color temperature, and light zoning.
• Ideal for:
  • Event staging (light shows, team intros)
  • Dynamic dimming during non-peak hours
  • Emergency lighting control

---

6.2 Motion and Daylight Sensors

• Motion Sensors:
  • Automatically reduce light levels when areas are not in use, cutting energy waste.
• Daylight Sensors:
  • Adjust brightness based on ambient daylight, optimizing both comfort and energy efficiency.

---

6.3 Smart Monitoring and Diagnostics

• Some advanced systems offer remote monitoring platforms that:
  • Detect performance issues (e.g., failing fixtures)
  • Send maintenance alerts to facility managers
  • Provide energy usage reports for sustainability tracking

---

6.4 Scene-Based Presets for Multi-Sport Facilities

• Pre-programmed settings allow you to instantly adjust lighting for:
  • Different sports (e.g., tennis vs. soccer)
  • Community events or concerts
  • Training vs. competition settings

---

6.5 Emergency Power and Redundancy Systems

• Battery backup or generator integration ensures lighting remains operational during power outages—critical for large venues hosting live broadcasts.

---

Summary Benefit:

• Enhanced control
• Reduced energy costs
• Improved user experience
• Future-ready capabilities for multi-event environments

7. Product Type Breakdown

Choosing the right type of sports lighting fixture is as important as meeting technical specifications. Different sports environments—indoor or outdoor, small or large—require purpose-built solutions.

---

7.1 Floodlights for Stadiums

• Best for: Outdoor stadiums, large sports complexes
• Typical Specs:
  • Power: 500W–2000W (LED equivalents)
  • Beam Angles: Narrow to wide distribution
  • Mounting: High masts, poles, or roof structures
• Features:
  • Long-throw optics for large coverage
  • Flicker-free and glare control designs
  • Compatible with DALI/DMX systems

Use Case Example: Football, rugby, athletics, baseball stadiums.

---

7.2 High Mast Lighting for Large Fields

• Best for: Airports, multi-sport fields, large training grounds
• Typical Specs:
  • Height: 20–50 meters
  • Light Coverage: Wide-area, large radius
• Features:
  • High uniformity at extreme heights
  • Weatherproof (IP66+ rated)
  • Durable against wind and vibrations

Use Case Example: Cricket fields, airport tarmacs, municipal sports parks.

---

7.3 Indoor Sports Hall Lighting

• Best for: Gyms, basketball courts, indoor arenas
• Typical Specs:
  • Power: 100W–400W (LED equivalents)
  • Beam Angles: Medium to wide
• Features:
  • Low-glare lenses
  • Flicker-free for slow-motion replay
  • Compact, easy to install at low to mid-height ceilings

Use Case Example: Basketball, volleyball, futsal, tennis.

---

7.4 Retrofit Kits for Existing Metal Halide Systems

• Best for: Facilities upgrading from outdated systems
• Typical Specs:
  • LED modules designed to fit existing mounting brackets
• Features:
  • No major infrastructure change needed
  • Lower upfront installation cost
  • Immediate energy savings and improved light quality

Use Case Example: Budget-conscious stadium upgrades, community fields.

---

Comparison Summary Table:

Product Type	Best Use Case	Key Features
Stadium Floodlights	Large outdoor stadiums	Long-throw optics, glare control, flicker-free
High Mast Lighting	Large outdoor multi-sport areas	Wide coverage, high mounting, weatherproof
Indoor Hall Lighting	Gyms, arenas	Low glare, compact design, flicker-free
Retrofit Kits	Upgrading metal halide installations	Reuse infrastructure, lower installation cost



8. How to Choose the Right Supplier

Selecting the right lighting supplier can make or break your project’s success. Beyond the product specifications, you need a trustworthy partner who provides technical support, warranty coverage, and proven project experience.

---

8.1 Key Evaluation Criteria

a. Compliance Documentation

• Ensure the supplier provides:
  • Photometric reports (IES or LDT files)
  • FIFA, EN 12193, or NCAA compliance certificates
  • Flicker-free and CRI testing data

b. Project References and Case Studies

• Ask for proven installations similar to your venue size and sport type.
• Request client testimonials or project photos to validate their expertise.

c. Warranty and After-Sales Support

• Look for:
  • 5–10 year warranty on LEDs and drivers
  • Local service teams or authorized partners
  • Spare parts availability for future maintenance

d. Customization Capabilities

• Check if they offer:
  • Tailored beam angles
  • Color temperature options
  • Control system integration (DALI/DMX)

e. Installation and Commissioning Services

• Some suppliers provide:
  • Turnkey installation
  • On-site aiming and lux level verification
  • Control system programming

---

8.2 Red Flags to Watch For

• Lack of technical documentation or unwillingness to share compliance data
• No real-world references or vague project claims
• Short warranty periods (less than 3 years)
• Overly generic solutions that don’t match your venue's unique needs

---

8.3 Sample Supplier Evaluation Checklist

Criteria	Supplier 1	Supplier 2	Supplier 3
Compliance Certifications	✅	✅	❌
Relevant Case Studies	✅	❌	✅
5–10 Year Warranty	✅	✅	❌
Customization Options	✅	❌	✅
Installation & Commissioning Support	✅	❌	❌



9. Cost Breakdown Example: From Budget Gyms to Pro Stadiums

Budget planning is a critical part of any sports lighting project. Costs vary significantly based on venue size, compliance requirements, and technology choices. Below is a realistic cost range based on typical projects in the market.

---

9.1 Small-Scale Projects – Community Gyms or Training Fields

• Project Type: Indoor gym or 200–500 lux outdoor training field
• Lighting Technology: Entry-level LED or retrofit kits
• Number of Fixtures: 8–16
• Estimated Budget: $8,000 – $20,000
• Inclusions:
  • Basic LED fixtures
  • Standard installation
  • Limited control options (on/off or simple dimming)

Recommended for: Schools, community centers, amateur sports clubs

---

9.2 Mid-Scale Projects – Semi-Pro Fields or Multi-Sport Arenas

• Project Type: 500–1500 lux field or multi-purpose arena
• Lighting Technology: High-performance LED floodlights
• Number of Fixtures: 20–40
• Estimated Budget: $30,000 – $80,000
• Inclusions:
  • High-uniformity LED floodlights
  • Glare control lenses
  • Optional smart control systems

Recommended for: Colleges, semi-professional teams, municipal sports parks

---

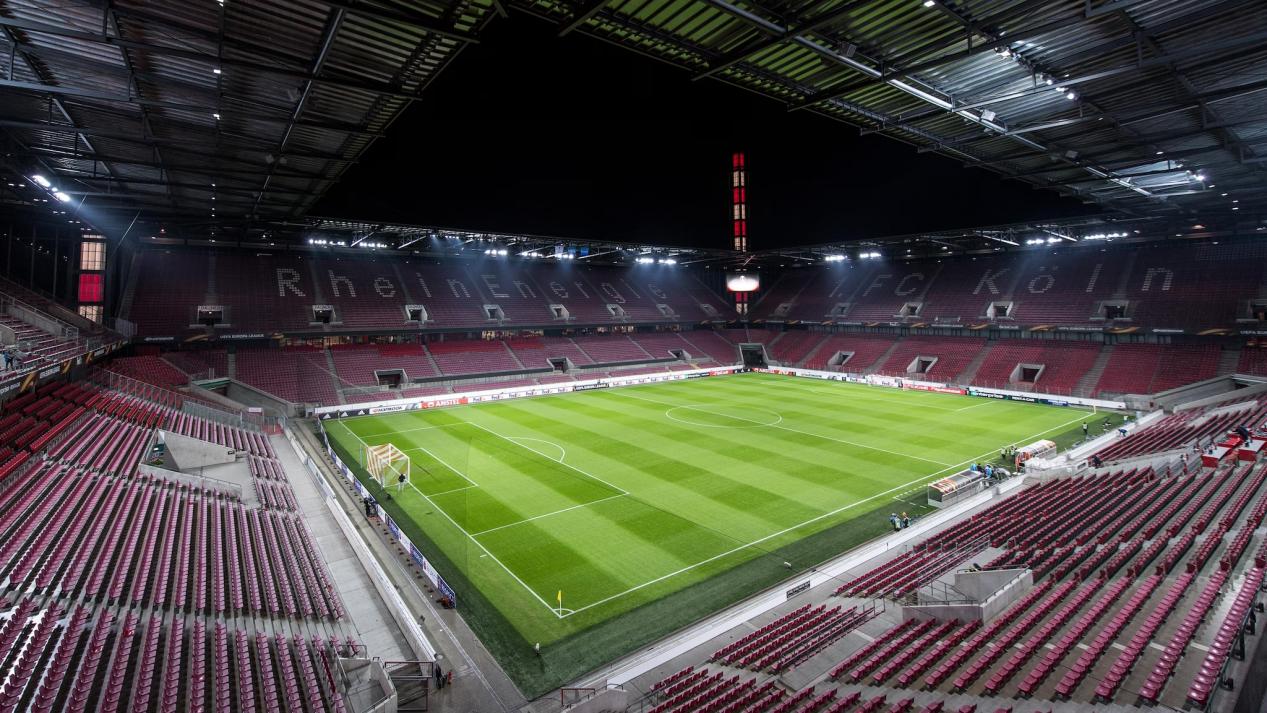

9.3 Large-Scale Projects – Professional Stadiums or Broadcast Venues

• Project Type: 2000–3500 lux stadium or professional arena
• Lighting Technology: Premium LED systems with smart control
• Number of Fixtures: 60–120
• Estimated Budget: $150,000 – $500,000+
• Inclusions:
  • High-CRI, flicker-free LED floodlights
  • DALI/DMX control systems
  • Professional aiming and lux certification services
  • Long-term warranty and support

Recommended for: Professional sports clubs, national stadiums, broadcast venues

---

Cost Optimization Tips

1. Prioritize Long-Term Savings: LED systems reduce energy and maintenance costs.
2. Consider Retrofit Solutions: Reusing existing poles or brackets can cut costs.
3. Request a Custom Proposal: Always ask suppliers for a site-specific lighting design and ROI analysis.

10. Conclusion & Action Steps

Key Takeaways

Selecting the right sports lighting solution involves much more than picking a product off the shelf. You must balance technical performance, regulatory compliance, long-term cost efficiency, and user experience.

Let’s recap the six-step selection framework you’ve learned:

1. Define Lux Levels based on your venue’s sport and broadcast needs.
2. Ensure Compliance with FIFA, UEFA, EN 12193, or NCAA standards.
3. Evaluate Key Specs like uniformity, glare rating, CRI, CCT, and flicker-free technology.
4. Compare LED vs. Metal Halide for energy savings and maintenance reduction.
5. Explore Advanced Features such as smart control systems and sensors.
6. Select a Reliable Supplier with proven projects, warranty support, and customization capabilities.

---

Ready to Upgrade Your Sports Lighting?
Contact our team today for a personalized lighting proposal that meets your performance, budget, and compliance goals.
? [Get Your Free Consultation]
