Solar Powered LED Street Lights 200-400W
Solar Powered LED Street Lights 200-400W
Solar Powered LED Street Lights 200-400W
Solar Powered LED Street Lights 200-400W
Solar Powered LED Street Lights 200-400W
Solar Powered LED Street Lights 200-400W
Solar Powered LED Street Lights 200-400W
Solar Powered LED Street Lights 200-400W
Solar Powered LED Street Lights 200-400W

Solar Powered LED Street Lights 200-400W

SSL049
Quantity:
DOWNLOAD MATERIALS
PARAMETERS
ABOUT
 SSL049

Description
With a high efficiency conversion rate of 18%-20%, it can also be charged in a low-light environment, intelligently charged during the day, and intelligently lit at night.
1. The microwave sensing distance is 8-10M. The sensing angle is 360°
2. In the microwave mode, the light is slightly on when there is no one, and the light is fully on when people come.When people leave the light, it turns on after 10-15 seconds and then turns into unoccupied state
3. The built-in anti-interference function of the single-chip microcomputer, there is no mutual interference between the lamp and the lamp

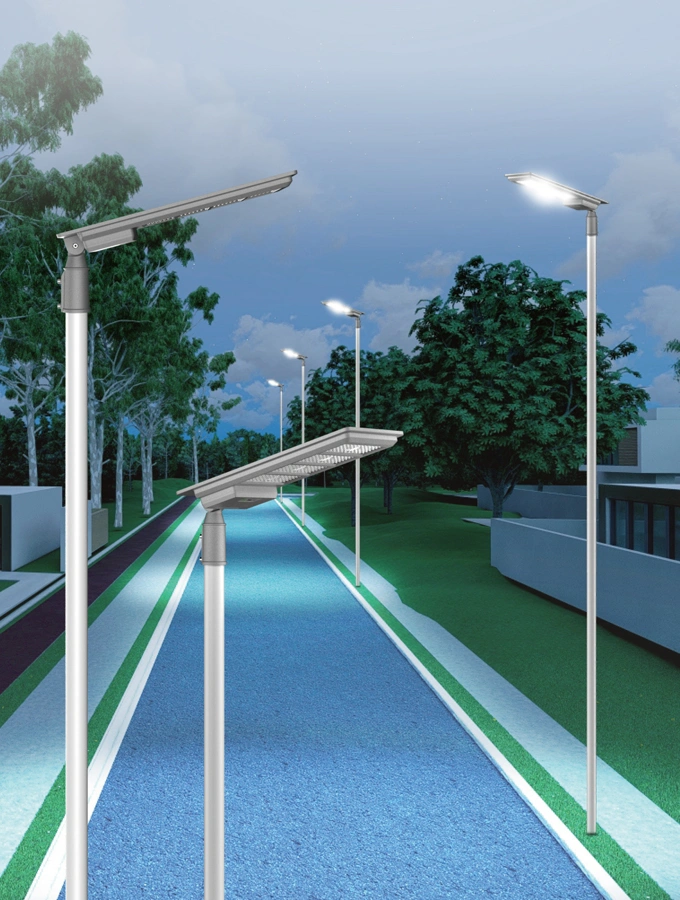

This series of street lights are widely used in outdoor roads. IP65 protection design, can be installed in urban roads, municipal engineering roads, country roads and other road lighting places. There are two installation methods of horizontal installation and vertical installation to meet the needs of different lighting places.

Advantages
●High-efficiency solar charging, no wiring.
●The brightness of the whole lamp is as high as 110lm/W.
●Adopt 5050 4-crystal high-brightness lamp beads.
●Professional road light distribution design.
●Lamp body anti-UV PC material.
●IP65 waterproof for outdoor use.
STRUCTURE
Product Model Wattage Solar Panel
Luminous Efficacy
Battery Color Temperature Beam Angle IP Grade IK Grade
Optical material
Fixing
Dimension(mm)
SSL049 200W 6V 16W 110LM/W
3.2V 15AH

 2400K|2700K|3000K
|4000K|5000K
Type II | Type III
IP65
IK08
PC
φ 60
648*280*92
SSL049 300W 6V 20W 110LM/W
3.2V 20AH
2400K|2700K|3000K
|4000K|5000K
Type II | Type III IP65 IK08 PC φ 60
718*280*92
SSL049 400W 6V 25W 110LM/W
3.2V 25AH
2400K|2700K|3000K
|4000K|5000K
Type II | Type III IP65 IK08 PC φ 60
818*280*92
LIGHT DISTRIBUTION
SPECS SHEET
SSL049 solar street light from Alite Lighting-2022-11.pdf
Download PDF
