Round led highbays

UFO100
Quantity:
DOWNLOAD MATERIALS
PARAMETERS
ABOUT

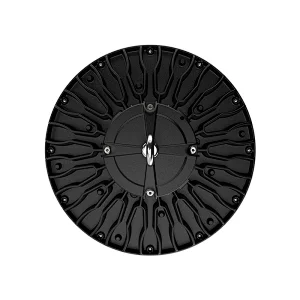

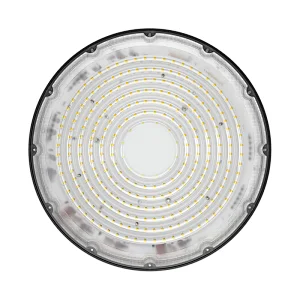

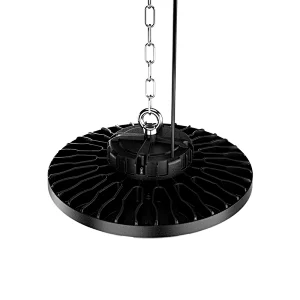

  UFO100
UFO100 is a new economical industrial and mining lamp which has three shell sizes of ABC correspon ding to different power requirements. It supports four mainstream solutions-linear, DOB, non-isolation and isolation. UFO100's thin, carbon-12 graphene shell makes its surface more textured. IP65 waterproof
grade makes it applicable in more cases than conventional mining lamps of the same power, meeting customers’ requirements of large-shell mining lamp. The UFO 100 is equipped with UV resistant PC integrated lens, which can effectively

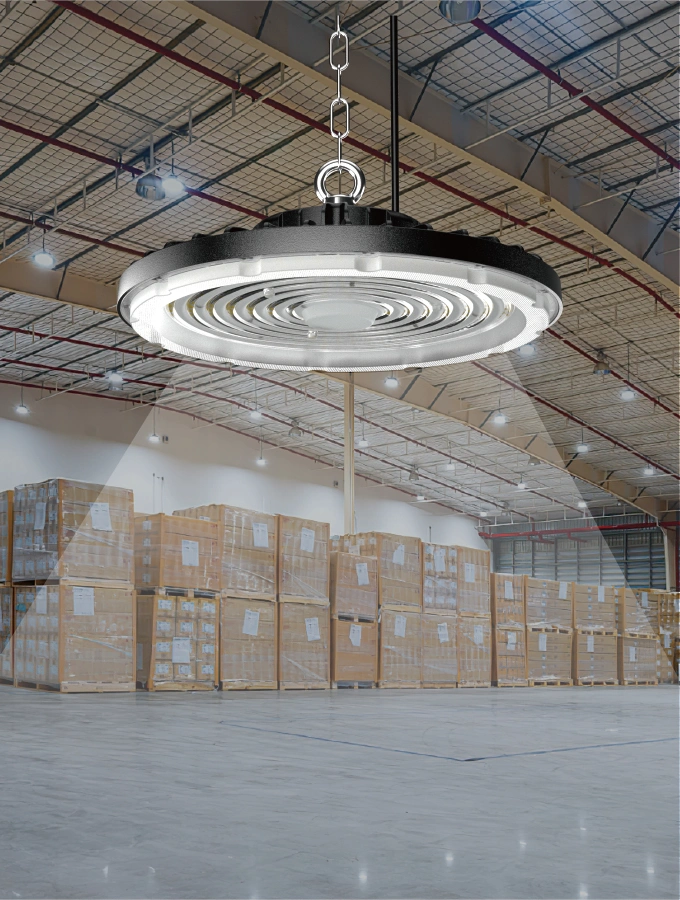

resist UV damage to internal devices, and the luminous angle is a symmetrical angle of 90 °. UFO100 can be used in warehouses, sports centers, logistics centers, supermarkets, railway stations and other similar indoor and outdoor places. It is the ideal substitute for traditional high-shed lamps.
●Efficiency: 160Lm/W
●High Quality Philips and Cree etc LED Chip
●PC cover with special reflector design for 90° beam angle
●Special anti-corrosion ADC12 aluminum
●Moisture tolerant IP65
APPLICATION

STRUCTURE
Product Model Wattage Input voltage Luminous Efficacy RA Color Temperature Beam Angle Power Factor IP Grade IK Grade Material Of Shell Material Of Lens Dimension(mm)
UFO100-A 100W AC100-265V 160LM/W > 70 | 80| 90 2400K | 2700K | 3000K| 4000K | 5000K 90° >0.9 IP65 IK08 Graphene PC 100W-A:Φ277*H41
100W-B:Φ277*H105
UFO100-B 150W AC100-265V 160LM/W > 70 | 80| 90 2400K | 2700K | 3000K| 4000|K5000K 90° >0.9 IP65 IK08 Graphene PC 150W-A:Φ310*H47
150W-B:Φ310*H105
UFO100-C 200W AC100-265V 160LM/W > 70 | 80| 90 2400K | 2700K | 3000K| 4000K|5000K  90° >0.9 IP65 IK08 Graphene PC 200W-A:Φ357*H47
200W-B:
Φ357*H105
LIGHT DISTRIBUTION
SPECS SHEET
UF100 LED High Bay Light-2022.pdf
Download PDF
