ASL25
High-quality and energy-efficient Lamp Street Light 10-240W, perfect for illuminating roads, streets, parking areas, gardens, and warehouses.
Quantity:
PARAMETERS

Introducing the ASL25 Engineering Street Light, the latest addition to our range of high-quality lighting solutions. With a host of impressive features and benefits, this product is sure to meet the needs of even the most discerning customers.


One of the key advantages of the ASL25 is its flexibility. Customers can choose between a framed or frameless design to suit their preferences. In addition, the frameless option boasts an impressive IK10 rating for impact resistance, making it ideal for use in areas prone to vandalism or accidental damage.


Another key selling point of the ASL25 is its ability to customize light effects according to the specific needs of each client. With a maximum light efficiency of 190-200LM/W, our product can deliver the perfect level of illumination for any situation. Whether you need bright, powerful lighting for public areas or a softer glow for more intimate settings, we have the technology to deliver.

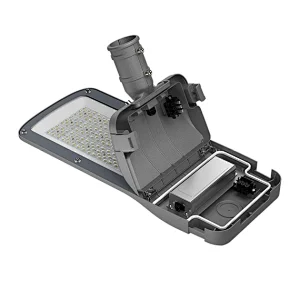

But perhaps the most unique feature of the ASL25 is its easy-to-use tool-free drive compartment. With this design, customers can quickly and easily change out drivers without the need for any additional tools. This saves time and effort, and ensures that our product is always performing at its best.


Of course, these are just a few of the benefits of choosing the ASL25 Engineering Street Light. Our product is also highly energy-efficient, long-lasting, and easy to maintain. Whether you're looking for a reliable lighting solution for public spaces, parks, or commercial areas, the ASL25 has you covered.





APPLICATION


ROADSRESIDENTIAL STREETSBRIDGESPARKING LOTAIRPORTPORT

STRUCTURE
Product Model Wattage Input voltage
Luminous Efficacy
RA Color Temperature Beam Angle Power Factor IP Grade IK Grade
Material Of Shell
Material Of Lens
Pole diameter
(mm)
Dimension(mm)
ASL25-A 10-60W
 AC90~305V
200LM/W  >70|80|90  2200K-6500K
Type I | Type II | Type III
>0.95
IP65|IP66
IK08|IK09| IK10
Aluminum (ADC12) +Optical Glass
PMMA | PC
φ 60
535*210*110
ASL25-B  70W-120W
AC90~305V
200LM/W >70|80|90  2200K-6500K  Type I | Type II | Type III >0.95 IP65|IP66 IK08|IK09| IK10 Aluminum (ADC12) +Optical Glass PMMA | PC φ 60
605*265*110
ASL25-C 130W-160W
AC90~305V
200LM/W >70|80|90  2200K-6500K Type I | Type II | Type III >0.95 IP65|IP66 IK08|IK09| IK10 Aluminum (ADC12) +Optical Glass PMMA | PC φ 60
710*265*110
ASL25-D 170W-240W
AC90~305V
200LM/W >70|80|90 2200K-6500K Type I | Type II | Type III >0.95 IP65|IP66 IK08|IK09| IK10 Aluminum (ADC12) +Optical Glass PMMA | PC φ 60 760*280*110
