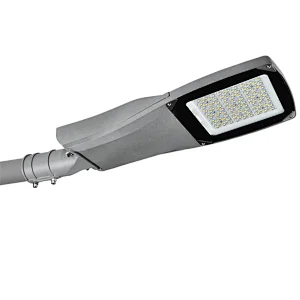

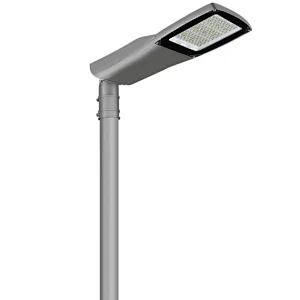

High Efficiency Street Light Led 30-200W

ASL29
The ASL29 FALCON SERIES street light led, is the Falcon in the sky of the cities it has been designed carefully to reach 170 lm/w  to become one of the most energy saving system in the lighting field.
Quantity:
DOWNLOAD MATERIALS
PARAMETERS




ABOUT    ASL29

ASL29 FALCON SERIES is the falcon in the city sky. It has been professionally designed treach 210 lm/w, becoming one of the most energy-efficient systems in the lighting field. ASL29 FALCON SERIES can be installed horizontally and vertically because it has the flexibility of cross rotation. At the same time, the
pioneering use of the rear driver compartment can form an independently disassembled structure, reducing the time and the risk of high-altitude maintenance, allowing maintenance and replacement of the driver in the studio instead of high altitude. The innovative waterproof structure and the design of multiple light transmitting holes enable the water protection level to reach IP66, and the anti-collision level IK09 (can be customized to be IK10), and support to change the lens angle to achieve different roads and adopt different light distribution types. As it supports the installation of built-in light sensors, installation of NEMA bases and Zhaga bases, it is compatible with all external controllers, motion sensors, and external light sensors

street light led
PRODUCT DETAILS
street light led
APPLICATION

street light led
STRUCTURE
Product Model Wattage Input voltage
Luminous Efficacy
RA Color Temperature Beam Angle Power Factor IP Grade IK Grade
Material Of Shell
Material Of Lens
Pole diameter
(mm)
Dimension(mm)
ASL29-A 10-80W  AC85-305V
AC450-480V
220LM/W  >70|80|90   2400K|2700K|3000K|
4000K|5000K|6500k
Type I | Type II | Type III
>0.95
IP65|IP66| IP67
IK08|IK09| IK10
Aluminum (ADC12) +Optical Glass
PMMA | PC
φ 60|φ 76
578*238*123
ASL29-B  80W-150W  AC85-305V
AC450-480V
220LM/W >70|80|90  2400K|2700K|3000K|
4000K|5000K|6500k
Type I | Type II | Type III >0.95 IP65|IP66| IP67 IK08|IK09| IK10 Aluminum (ADC12) +Optical Glass PMMA | PC φ 60|φ 76
680*266*123
ASL29-C 150W-200W AC85-305V
AC450-480V
220LM/W >70|80|90  2400K|2700K|3000K|
4000K|5000K|6500k
Type I | Type II | Type III >0.95 IP65|IP66| IP67 IK08|IK09| IK10 Aluminum (ADC12) +Optical Glass PMMA | PC φ 60|φ 76
798*300*123
LIGHT DISTRIBUTION

street light led
street light led
street light led
street light led
street light led
street light led
SPECS SHEET
ASL29 Falcon from Alite Lighting 2022.pdf
Download PDF
2022 LED Street Lights catalogue from Alite.pdf
Download PDF
FALCON100W(ASL29-A)T3-1.pdf
Download PDF
Spectrophotocolorimeter Test Report 100W.pdf
Download PDF
