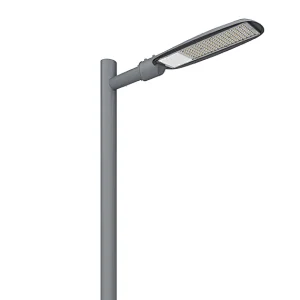

Residential LED Street Lights

PARAMETERS

The ASL40 MANTA street light is called the Manta model, which is our main style in 2022. This style has good heat dissipation, is lightweight, easy to install and very economical. It is very suitable for South Asia, South America, Middle East and other markets. The brightness, is suitable for usein all environments.

●MILITARY SHELL

EFFICIENT HEAT DISSIPATION THE DRIVER ROOM IS EQUIPPED
●BREAKER

WITH A SAFTY SWITCH TO ENSURE THE SAFETY OF THE INSTALLATION

AND MAINTENANCE PERSONNEL

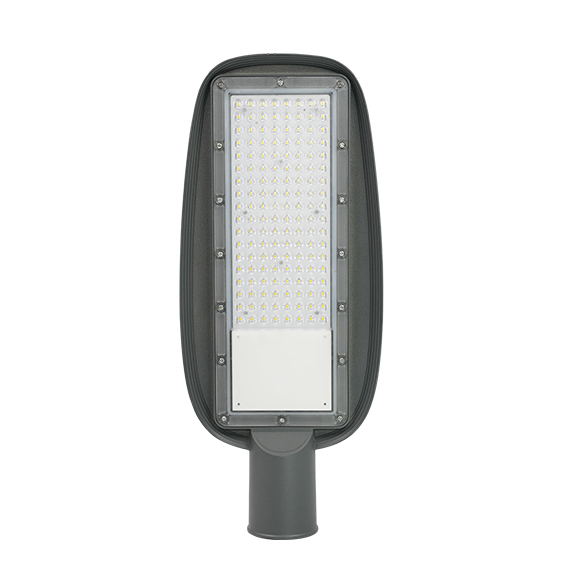

PRODUCT DETAILS

APPLICATION


ROADS	RESIDENTIAL STREETS	BRIDGES	PARKING LOT	AIRPORT	PORT

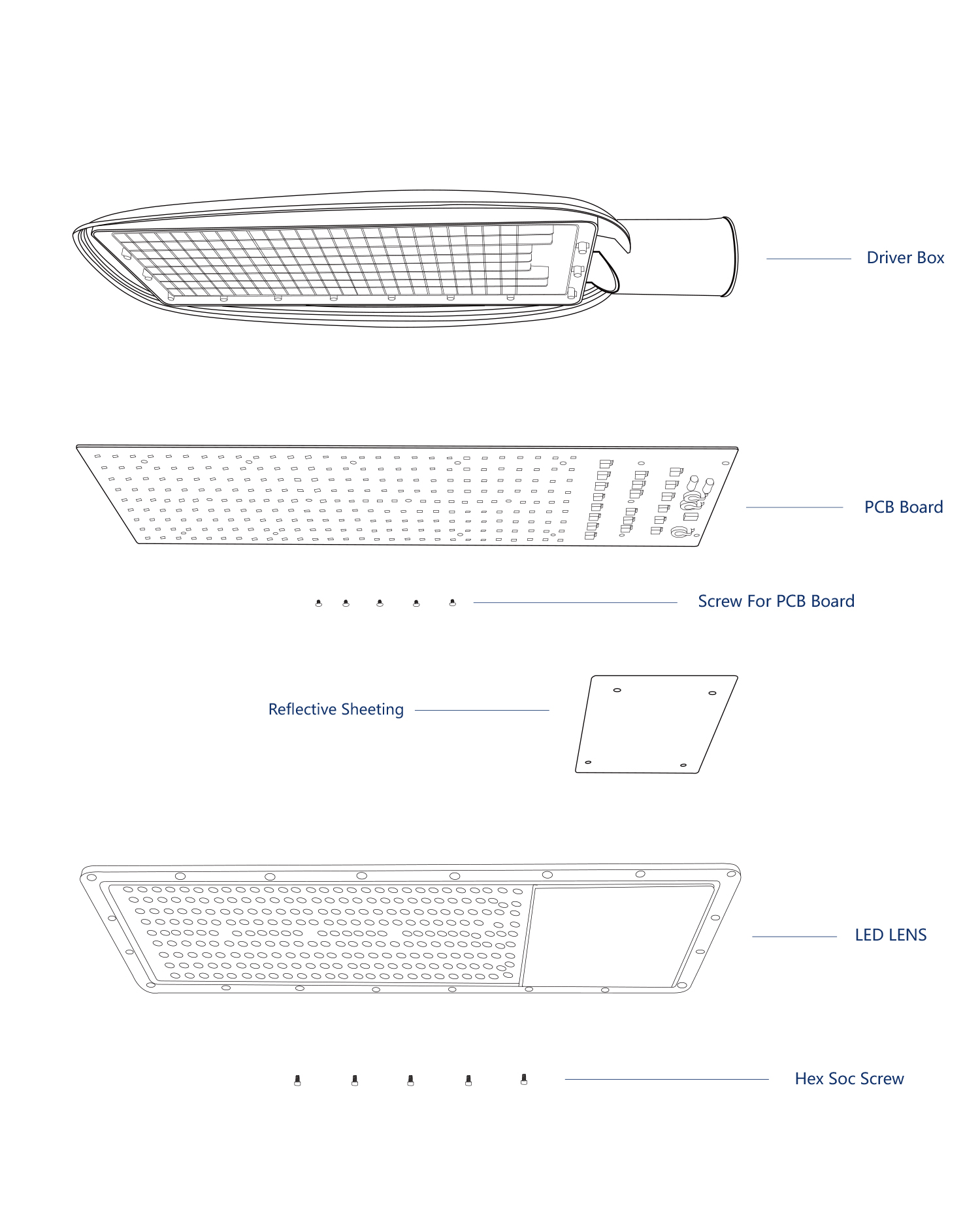

STRUCTURE

Product Model

Wattage

Input voltage

Luminous Efficacy

RA

Color Temperature

Beam Angle

Power Factor

IP Grade

IK Grade

Material Of Shell

Material Of Lens

Pole diameter
(mm)

Dimension（mm）

ASL40-A

50W

AC220-240V
AC100-277V

100LM/W

>70|80|90

2400K|2700K|3000K|4000K|5000K

80°×120°

＞0.9

IP65

IK08

Aluminum (ADC07)

PMMA | PC

φ 60

390*160*75

ASL40-B

100W

AC220-240V
AC100-277V

100LM/W

>70|80|90

2400K|2700K|3000K|4000K|5000K

80°×120°

＞0.9

IP65

IK08

Aluminum (ADC07)

PMMA | PC

φ 60

470*200*75

ASL40-C

150W

AC220-240V
AC100-277V

100LM/W

>70|80|90

2400K|2700K|3000K|4000K|5000K

80°×120°

＞0.9

IP65

IK08

Aluminum (ADC07)

PMMA | PC

φ 60

530*220*75

ASL40-D

200W

AC220-240V
AC100-277V

100LM/W

>70|80|90

2400K|2700K|3000K|4000K|5000K

80°×120°

＞0.9

IP65

IK08

Aluminum (ADC07)

PMMA | PC

φ 60

530*220*75

LIGHT DISTRIBUTION

50W	100W
150W	200W

SPECS SHEET

ASL40 MANTA from Alite Lighting 2022 .pdf

Download PDF

2022 LED Street Lights catalogue from Alite.pdf

Download PDF

MANTA100W(ASL40-B).pdf

Download PDF

ASL40 Spectrophotocolorimeter Test Report.pdf

Download PDF

Residential Street Light 50-200W
