HOME
PRODUCTS
LED Flood Light
LED Floodlight Outdoor 50-200W

PARAMETERS

AFL18 is a new type luminaire with 4 different housings, which can achieve optimal cost and also meet customers’ power requirements. AFL18 is made of ADC12 die-cast aluminum, and its unique fifin design structure greatly improves the heat dissipation effect of the lamp.Its surface glass can effectively strengthen lamp structure, protect lamp beads and driver and also block UV radiation.Its water-proofing grade is IP65, ensuring that the luminaire can work properly in any harsh environment.

AFL18is designed with a variety of features: 4 different mounting methods for clients; Conventional U-shaped bracket supports 180° adjustment to

meet lighting needs under different situations; AB-type bracket can be mounted directly on the wall; Threaded adapters with suction cups is easy for installation and removal in daily use.

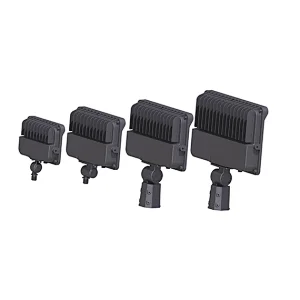

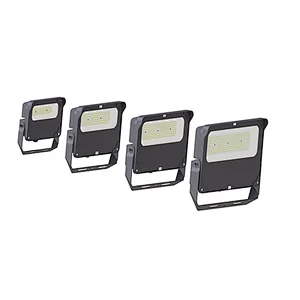

Multiple Installation Methods

APPLICATION


ROADS	TUNNELS	WAREHOUSE	PARKING LOT	SPORTS FACILITIES	PORT

STRUCTURE

Product Model	Wattage	Input voltage	Luminous Efficacy	RA	Color Temperature	Beam Angle	Power Factor	IP Grade	IK Grade	Material Of Shell	Dimension（mm）
AFL18-A	50W	AC100-240V	150LM/W	>70\|80\|90	2400K\|2700K\|3000K\|4000K\|5000K	120°	＞0.9	IP65	IK08	Aluminum (ADC12)	*22121460*
AFL18-B	100W	AC100-240V	150LM/W	>70\|80\|90	2400K\|2700K\|3000K\|4000K\|5000K	120°	＞0.9	IP65	IK08	Aluminum (ADC12)	*28626571*
AFL18-C	150W	AC100-240V	150LM/W	>70\|80\|90	2400K\|2700K\|3000K\|4000K\|5000K	120°	＞0.9	IP65	IK08	Aluminum (ADC12)	*33129675*
AFL18-D	200W	AC100-240V	150LM/W	>70\|80\|90	2400K\|2700K\|3000K\|4000K\|5000K	120°	＞0.9	IP65	IK08	Aluminum (ADC12)	*38933678*

LIGHT DISTRIBUTION

SPECS SHEET

AFL18 LED Floodlight from Alite Lighting.pdf

Download PDF

LED Floodlight Outdoor 50-200W
