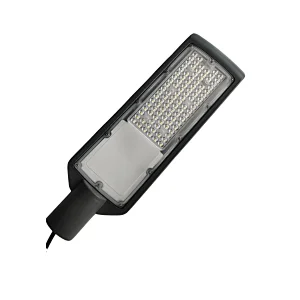

Black Street Light 30-200W

ASL49
Quantity:
DOWNLOAD MATERIALS
PARAMETERS

The ASL49 SERIES black street light is the light in the sky of the cities it has been designed carefully to be ultra thin to become one of the most thin system in the lighting field , ASL49 SERIES street light an be installed horizontally and vertically due to the flexibility of its cross rotation .


The innovative waterproof structure and the design of multiple permeable holes road light lamp can make the protection level reach IP65, and an anti-collision level IK09 (can be customized), and this street light support to change the lens angle to achieve different roads and adopt different light distribution type.


As this street light Support the installation of built-in light sensors, installation of NEMA bases and Zhaga bases, compatible with all external controllers, motion sensors, and external light sensors.

black street light
APPLICATION


ROADSRESIDENTIAL STREETSBRIDGESPARKING LOTAIRPORTPORT
STRUCTURE

Product Model Wattage Input voltage
Luminous Efficacy
RA Color Temperature Beam Angle Power Factor IP Grade IK Grade
Material Of Shell
Material Of Lens
Dimension(mm)
ASL49 30W  AC100-240V 100Lm/W  >70|80|90   2400K|2700K|3000K|4000K|5000K
Type I | Type II | Type III
>0.9
IP65
IK08
Aluminum (ADC12)
PMMA | PC
640*360*365
ASL49  50W AC100-240V 100Lm/W >70|80|90 2400K|2700K|3000K|4000K|5000K Type I | Type II | Type III >0.9 IP65 IK08 Aluminum (ADC12)  PMMA | PC
640*390*430
ASL49 100W AC100-240V 100Lm/W >70|80|90 2400K|2700K|3000K|4000K|5000K Type I | Type II | Type III >0.9 IP65 IK08 Aluminum (ADC12)  PMMA | PC
690*310*490
ASL49 150W AC100-240V 100Lm/W >70|80|90 2400K|2700K|3000K|4000K|5000K Type I | Type II | Type III >0.9 IP65 IK08 Aluminum (ADC12)  PMMA | PC 790*350*610
ASL49 200W AC100-240V 100Lm/W >70|80|90 2400K|2700K|3000K|4000K|5000K Type I | Type II | Type III >0.9 IP65 IK08 Aluminum (ADC12)  PMMA | PC 700*430*395
LIGHT DISTRIBUTION

50W
black street light
100W
black street light
150W
black street light
200W
black street light
