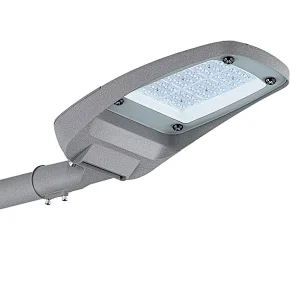

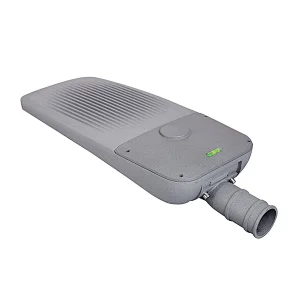

New Street Lamp 30-200W

ASL15
NEMA Socket Smart Orange All 30W 50w 60w 80w 100w 200W Led Street Light
Quantity:
DOWNLOAD MATERIALS
PARAMETERS
ASL15 PENGUINE SERIES are the best outdoor street lamp choice against water, rain and thunder. Moreover, it's easy to install and suitable for different applications because of its medium wide light distribution.

In normal working conditions, the innovative street lights PENGUINE outdoor Street Lamp can reach 130 Lm/W. At the same time it is subdivided into 5 different sizes, which can save the investment cost of street lamps. With perfect price and high performance, it achieves IP66 protection level and anti-collision level IK08.

And the customized commercial street lights can reach IK09 anti-collision grade. Also it supports changing the lens angle to achieve different light distribution types. Again this modal supports the installation of built-in light sensors, installation of NEMA bases and Zhaga bases. And it's compatible with all external controllers, motion sensors, and external light sensors.

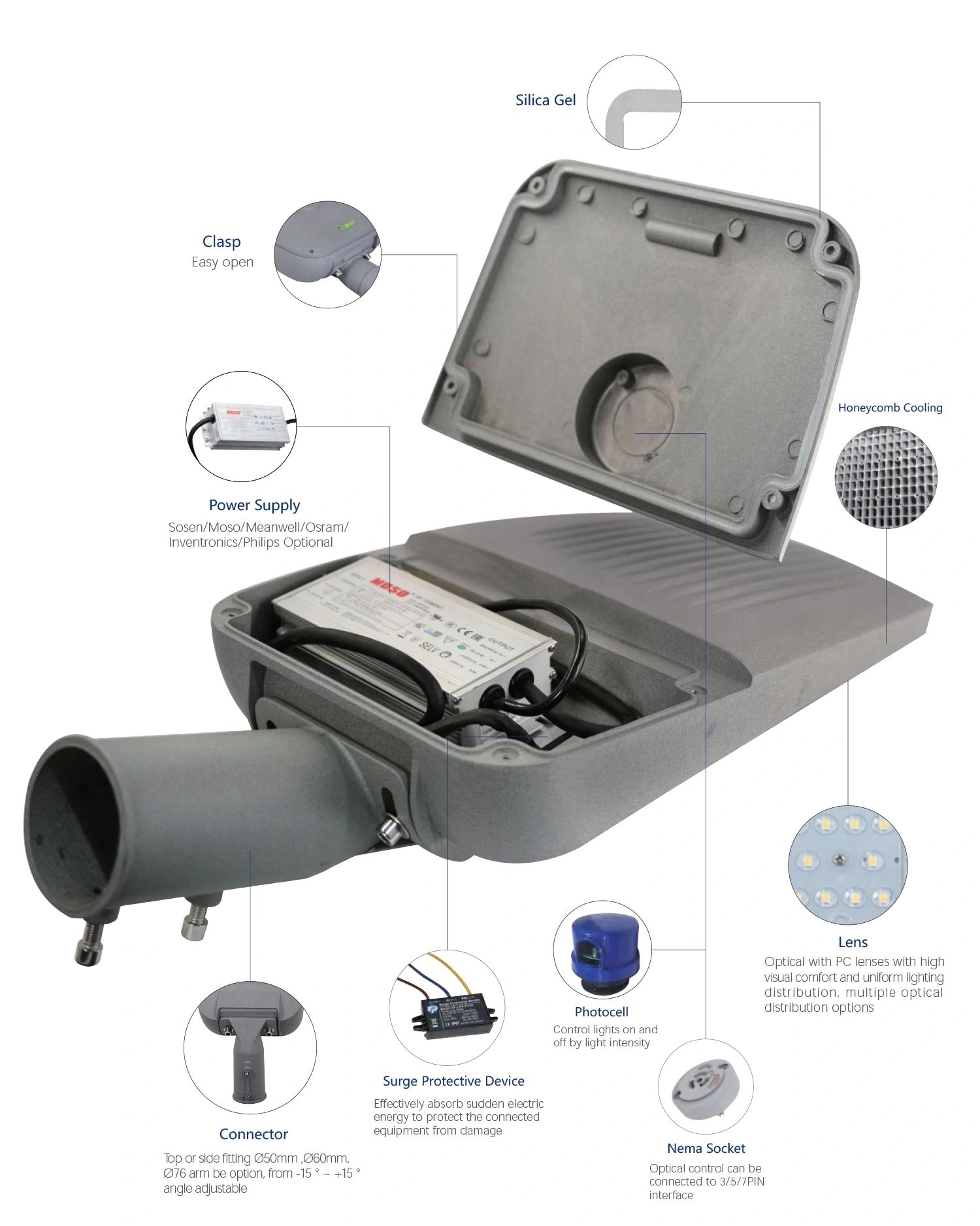

● BRAND LED LAMP BEADS
HIGH BRIGHTNESS,HIGH COLOR RENDERING,LONG LIFESPAN
● BREAKER
THE DRIVER ROOM IS EQUIPPED WITH A SAFTY SWITCH TO ENSURE
THE SAFETY OF THE INSTALLATION AND MAINTENANCE PERSONNEL
Street Lamp
PRODUCT DETAILS
Street Lamp

APPLICATION


ROADSRESIDENTIAL STREETSBRIDGESPARKING LOTAIRPORTPORT
STRUCTURE

Product Model Wattage Input voltage
Luminous Efficacy
RA Color Temperature Beam Angle Power Factor IP Grade IK Grade
Material Of Shell
Material Of Lens
Pole diameter
(mm)
Dimension(mm)
ASL15-A 30W|40W  AC100-277V 140LM/W  >70|80|90   2400K|2700K|3000K|4000K|5000K
Type I | Type II | Type III
>0.9
IP66
IK08
Aluminum (ADC07) +Optical Glass
PMMA | PC
AB:φ 40
CDE:φ 60
420*180*100
ASL15-B  50W|60W  AC100-277V 140LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K Type I | Type II | Type III >0.9 IP66 IK08 Aluminum (ADC07) +Optical Glass PMMA | PC AB:φ 40
CDE:φ 60
470*180*110
ASL15-C 80W|100W AC100-277V 140LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K Type I | Type II | Type III >0.9 IP66 IK08 Aluminum (ADC07) +Optical Glass PMMA | PC AB:φ 40
CDE:φ 60
560*240*115
ASL15-D 120W|150W AC100-277V 140LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K Type I | Type II | Type III >0.9 IP66 IK08 Aluminum (ADC07) +Optical Glass PMMA | PC AB:φ 40
CDE:φ 60
690*280*130
ASL15-E 180W|200W AC100-277V 140LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K Type I | Type II | Type III >0.9 IP66 IK08 Aluminum (ADC07) +Optical Glass PMMA | PC AB:φ 40
CDE:φ 60
740*280*130
LIGHT DISTRIBUTION

Street Lamp
Street Lamp
Street Lamp

Street Lamp
Street Lamp
Street Lamp
