Project led street light 30-200W

ASL02
Quantity:
DOWNLOAD MATERIALS
PARAMETERS

ABOUT

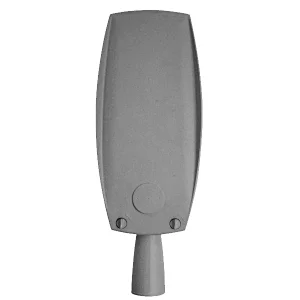

  ASL02

ASL02 Street light SERIES offers the best LED road lighting solution to our clints for both pedestrian and vehicle road applications specially for Smart City Street Lighting . It offers 3 different housing sizes withs IP65, IK08 and a wide range of beam optics to globally cater to different road design and conditions. It has designed to achieve better light uniformity distribution and maximum spacing between poles, while ensuring perfect light on the road. IP65, IK08. And  this modal is compatible with built-in light sensors, installation of NEMA bases and Zhaga bases, and fit with all external controllers, motion sensors, and external light sensors.

led street light
STRUCTURE

Product Model Wattage Input voltage
Luminous Efficacy
RA Color Temperature Beam Angle Power Factor IP Grade IK Grade
Material Of Shell
Material Of Lens
Dimension(mm)
ASL02-A 30W|40W|50W|60W  AC85-265V >130LM/W  >70|80|90   2400K|2700K|3000K|4000K|5000K
Type I | Type II | Type III
>0.95
IP66
IK09
Aluminum (ADC12) +Optical Glass
PMMA | PC
690*290*165
ASL02-B 80W|100W  AC85-265V >130LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K Type I | Type II | Type III >0.95 IP66 IK09 Aluminum (ADC12) +Optical Glass PMMA | PC
790*340*165
ASL02-C 120W|150W180W|200W AC85-265V >130LM/W >70|80|90 2400K|2700K|3000K|4000K|5000K Type I | Type II | Type III >0.95 IP66 IK09 Aluminum (ADC12) +Optical Glass PMMA | PC
970*410*195
LIGHT DISTRIBUTION

led street light
led street light
led street light
led street light
SPECS SHEET
ASL02 Product Specification.pdf
Download PDF
ASL02 Installation Guide.pdf
Download PDF
ASL02 Technical Data.pdf
Download PDF
2022 LED Street Lights catalogue from Alite.pdf
Download PDF
